Automatic Single or Multi Head Dry Auger Powder Filler Machine Manufacturer

Multi Head Linear Auger Powder Filling Machine

For Different Packaging Solutions in Food, FMCG, Pharmaceutical, Cosmetics etc.
Download Brochure

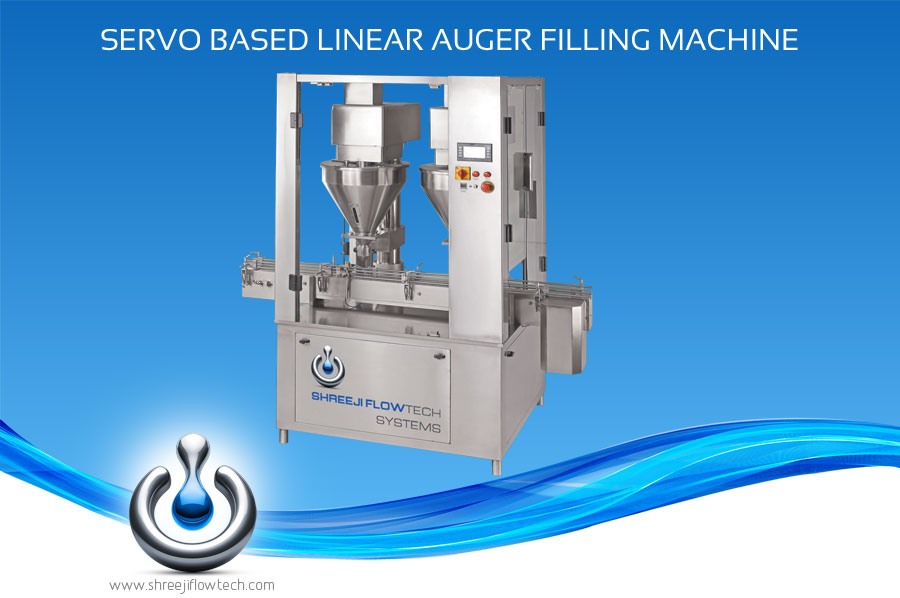

Single/Multi Head Auger Powder Filler Machine

Details- Single/Multi Head Auger Powder Filling Machine

Automatic single or multiple head Servo auger filler with conveyor and structure suitable to fill various type of free flow or non-free flow powder in to various type of container.

Servo Auger filler systems enable you to achieve precise, repeatable filling cycles. With each fill cycle, the servo accelerates at chosen speed rotates a selected number of revolutions and stop with repeatable filling and accuracy cycle each time.

Weight base auger fillersystem are used when a specific, verified, weighed quantity of product is to be dispensed include scales and load cell components to fill an accurate weight.

Specifications - Servo Auger Powder Filling Machine

7” Color Touch Screen with Plc for Various Error Message and Control System
Rugged, Reliable Construction.
Servo Auger Drive with Independent Agitator and Servo Motor.
No Bottle No Filling, Out Feed Jam Machine Stop, Low Powder Level in Hoper Machine Stop, Etc.
Programmable For Multi Speed and Profile Filling Cycles
Multiple Adjustments without the Need to Stop the Machine.
Designed For Easy Change-Over And Cleaning.
Integrated Fault Light And Alarm to Inform Operator Production Error

Individual Auger Head Adjustment for Fine Tuning.
All Contact Parts Are SS-316, PTFE and Non-Contact Parts SS 304, MS Frame Structure with SS Cladding
All Product Contact Parts Easy Removable For Sterilize.
Adjustable Conveyor Guide Rails to Accommodate with Different Products.
Pneumatic Bottle Stopper for Smooth and Accurate Container Handling
Fully Interlocked Guarding For Filling Zone Protection Safety
High Filling Accuracy: ± 2 To 3%
