12 Head Automatic Pick and Place Bottle Capping Machine Manufacturers

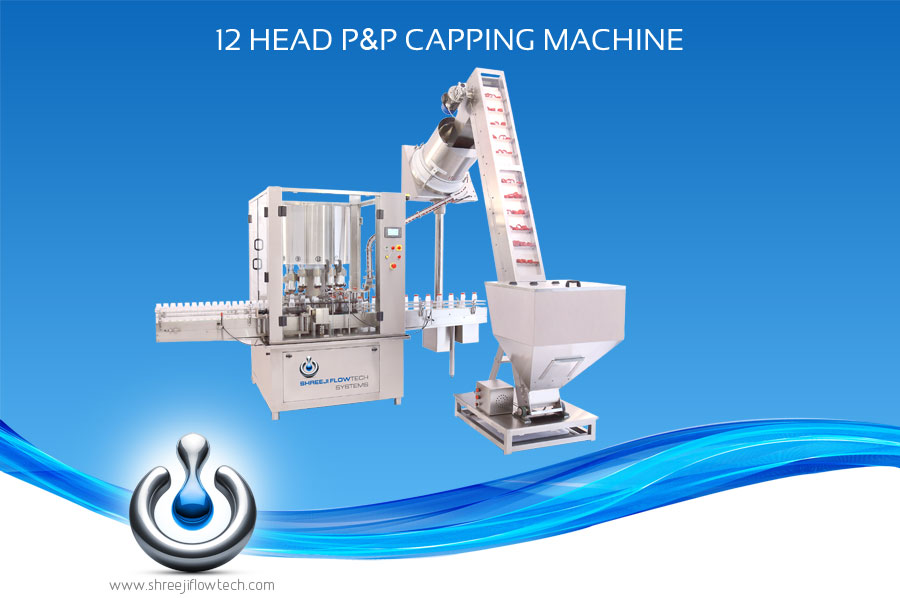

12 Head Pick and Place Bottle Capping Machine
Download Brochure

Twelve Head Servo Pick and Place Bottle Capping Machine

Details - 12 Head Capping Machine

Specially designed pneumatically operated gripper type pick n place with torque adjustment rotary plastic screw capping machine suitable for screw cap or snap/press fit caps.

Bottles entering the machine are transferred to the turret star wheel where they are placed in the star wheel pockets to precisely align them underneath the capping heads. The rotating head with the cap descends onto the bottle and applies the cap with the desired torque

P&P Capping machine in order to be used for different capping applications such as food & beverages, pharmaceutical, pesticides, distilleries, cosmetic, toiletries, personal care, chemical, oil etc. A very broad selection of both standalone Automatic capping machine as well as Mono-block with liquid filling or powder filling systems. Machines can often be supplied with cap Elevator.

Specifications / Key Features

7” color touch screen with plc for various error message and control system
Fast product changeovers
Low power consumption
Integrated fault light and alarm to inform operator production error
Accurate and repeatable performance
All contact parts are SS 304, Delrin, Aluminum, Silicon, MS frame structure with SS cladding
Adjustable conveyor guide rails to accommodate with different products

No bottle no capping system
Motorized height adjustment of capping heads
Cap Feeder Auto On/Off system preventing cap damage
Clutch System in feed worm to avoid bottle damage during operation
Smooth and accurate container handling
Machine auto on / off system, it will start automatically once bottle enter to the in feed conveyor and stop if bottle absence
Fully interlocked guarding for protection safety
Synchronized variable speed control
